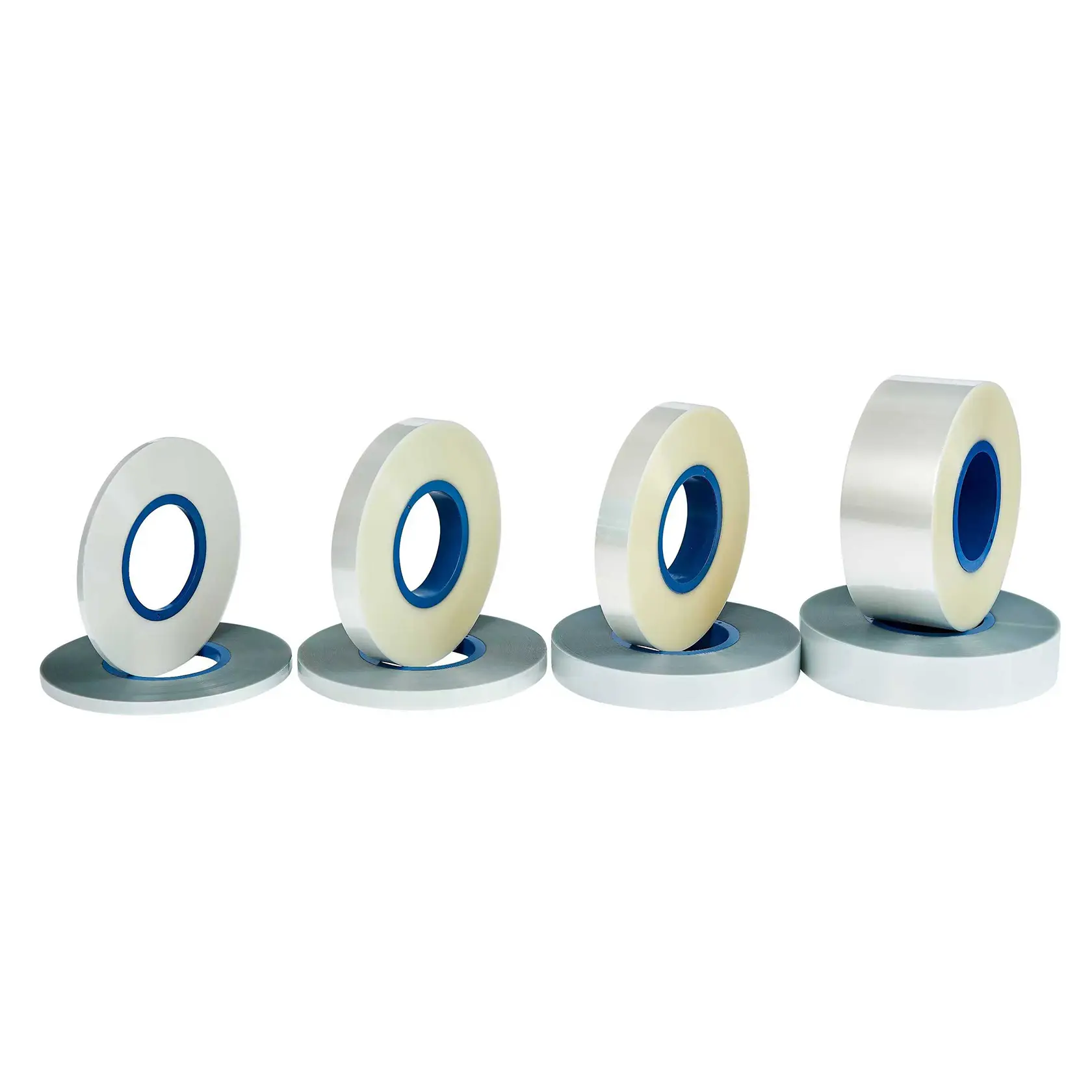

The YJRG-59H series cover tape comprises the base model YJRG-59H, the single-sided anti-static model YJRG-59H-1L, and the double-sided anti-static model YJRG-59H-1LS. The product features a standard thickness of 0.055mm, a design that achieves an optimal balance between mechanical strength and handling convenience. It demonstrates excellent mechanical properties, with a tensile strength ≥2.5kg and an elongation ≥30%. This combination of parameters ensures stable performance during high-speed packaging processes. Thermal performance data indicates that this series is suitable for conventional sealing temperatures of 150-180°C, while also meeting the requirements for high-speed sealing at 190-250°C. The precisely controlled peel force range of 30-90g guarantees sealing reliability while facilitating potential rework operations. Designed specifically for use with PS carrier tapes, the double-sided anti-static model within the series provides comprehensive protection for sensitive electronic components, effectively preventing electrostatic damage and improving product yield.

The YJRG-72 series cover tape offers three options: the standard YJRG-72, the single-sided anti-static YJRG-72-1L, and the double-sided anti-static YJRG-72-1LS. This series features a thinner design with a 0.05mm thickness, which maintains necessary mechanical strength while achieving better conformability and adaptability. The product demonstrates excellent mechanical performance, with a tensile strength ≥2.5kg and elongation ≥30%. This parameter combination ensures the tape can withstand mechanical stresses during the packaging process while maintaining good deformation recovery capability. In terms of thermal performance, the product supports conventional sealing temperatures of 150-180°C and can also accommodate high-speed sealing processes at 190-250°C. A distinctive feature of this series is its compatibility with three different carrier tape materials: PS, PC, and PET.

The YJRG-73 series cover tape includes the standard model YJRG-73, the single-sided anti-static model YJRG-73-1L, and the double-sided anti-static model YJRG-73-1LS. With a standard thickness of 0.055mm, this thickness specification achieves an optimized balance between protective performance and handling convenience. The product delivers reliable mechanical properties, featuring a tensile strength ≥2.5kg and elongation ≥30%. Thermal performance data indicates that this series is suitable for conventional sealing temperatures ranging from 150-180°C, while also meeting high-speed sealing requirements at 190-250°C. Compatible with three carrier tape materials - PS, PC, and PET - this multi-compatibility feature enables adaptation to different production processes.

The YJRG-75E-3 series cover tape features a thinner design with a 0.045mm thickness, providing distinct advantages in space-constrained applications. The product delivers excellent mechanical properties, with tensile strength ≥2.5kg and elongation ≥30%. This parameter combination ensures reliable mechanical protection even at the reduced thickness. In terms of thermal performance, the product supports conventional sealing temperatures of 150-180°C while accommodating high-speed sealing processes at 190-250°C. It is particularly suitable for precision electronic component packaging applications with strict thickness requirements.

The YJRG-72E series cover tape consists of the base model YJRG-72E, the single-sided anti-static model YJRG-72E-1L, and the double-sided anti-static model YJRG-72E-1LS. Featuring a standard thickness of 0.05mm, this design achieves an optimal balance between protective performance and applicability. Mechanical performance parameters demonstrate a tensile strength ≥2.5kg and elongation ≥30%, ensuring stable performance across various packaging conditions. Regarding anti-static performance, the double-sided anti-static model delivers comprehensive protection for sensitive components.

The YJRG-73E series cover tape offers three variants designed with a 0.055mm thickness, providing wide applicability in electronic packaging. The product demonstrates reliable mechanical performance with tensile strength ≥2.5kg and elongation ≥30%, ensuring consistent performance during automated packaging processes. The precisely calibrated peel force range of 30-90g ensures packaging reliability while maintaining rework convenience. Particularly in applications requiring electrostatic protection, the double-sided anti-static model provides reliable safeguarding.

The most prominent feature of the YJRG-73E-3 series is its ultra-thin 0.04mm design, making it the thinnest product in the entire lineup. It is particularly suitable for ultra-precision electronic component packaging with strict thickness requirements. Despite its extremely thin profile, the product maintains excellent mechanical properties with tensile strength ≥2.5kg and elongation ≥30%. The specially designed peel force range of 30-90g ensures both packaging reliability and operational convenience during rework.
